    Looking real good bro. (y)

  2. MEANVN

    MEANVN New Member

    Joined:
    Oct 23, 2010
    Messages:
    51
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Melbourne.australia
    just went through the whole thread, i must say stickman,
    1 yes you are lucky to have a wife that helps with the wagon aswell as cook.
    2 you have a awsome wagon and keep up the good work

  3. custom cruiser

    custom cruiser New Member

    Joined:
    Sep 5, 2010
    Messages:
    20
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Wisconsin
    Great Car

    I just read the thread front to back - lots of work but it looks great

    hmmmm now you have me thinking about a motor swap

    keep up the good work and I really appreciate all the pics/posts to follow

  4. The Stickman

    The Stickman Well-Known Member

    Joined:
    Nov 26, 2008
    Messages:
    1,316
    Likes Received:
    9
    Trophy Points:
    111
    Wagon Garage:
    3
    Location:
    Lehigh Valley pa
    Minor update. Today I have started taking things apart as I want to swap intakes and have to replace the water pump. So while I have the front of the engine apart I am toying with mounting the altenator on the passenger side. It might really come out well. I also looked at the underside of the rear of the car to see about making a diffuser and came up with some really nice ideas. I also weighed the aluminum hood, hinges and springs. The hood weighs 26lbs and the hinges and springs another 4lbs for a total of 30 lbs. ​

  5. The Stickman

    The Stickman Well-Known Member

    Joined:
    Nov 26, 2008
    Messages:
    1,316
    Likes Received:
    9
    Trophy Points:
    111
    Wagon Garage:
    3
    Location:
    Lehigh Valley pa

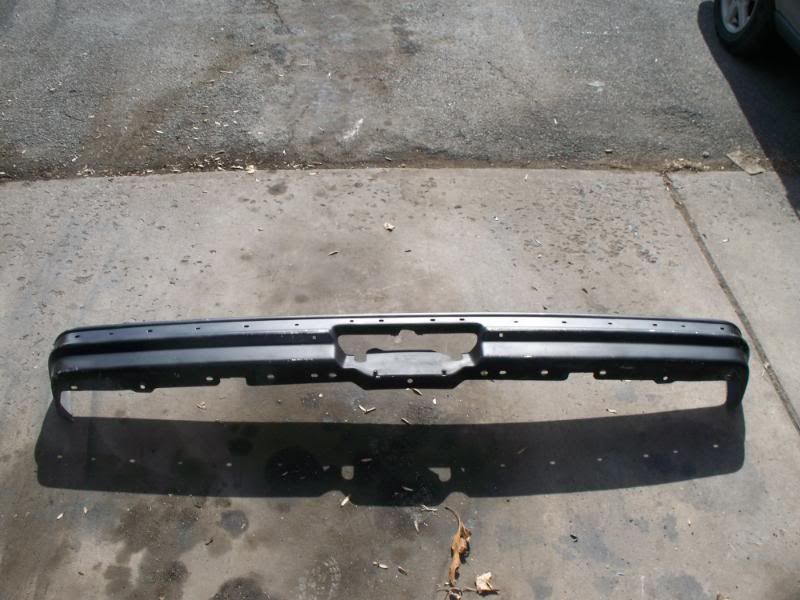

    Ok minor update. Took some more pics today. This is my diffuser project. It should help get help get the air out from under the car better. On the wagon the tank is way forward and between it and the bumper is open air and a crossmember. This should allow the air to come out from under the car more smoothly. I still have to make the tunnels for it, which I hope to work on tomorrow. Here is the untouched bumper.
    [​IMG]
    And one side done to show the difference between the 2 sides.
    [​IMG]
    And both sides done.
    [​IMG]

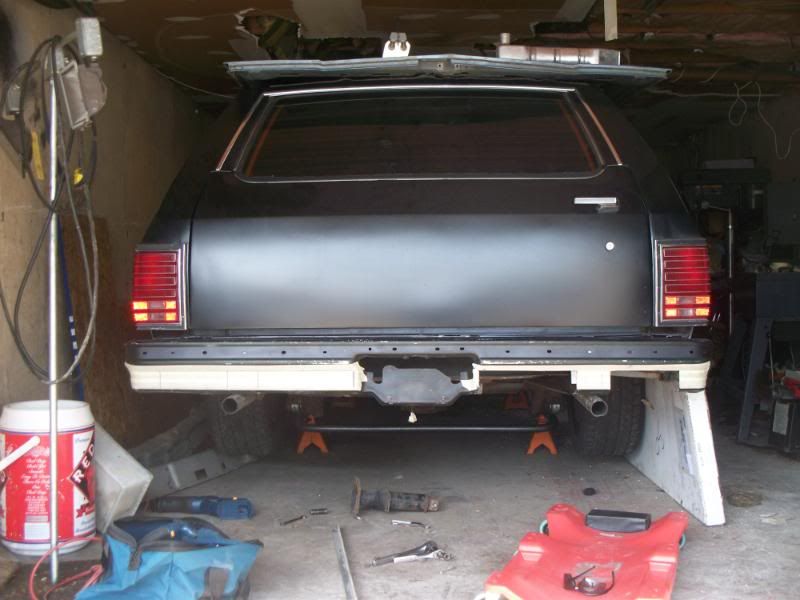

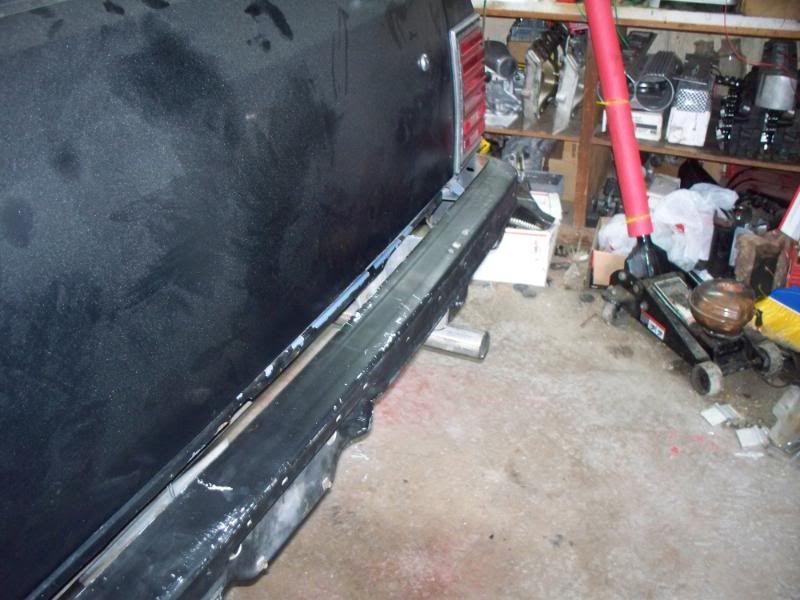

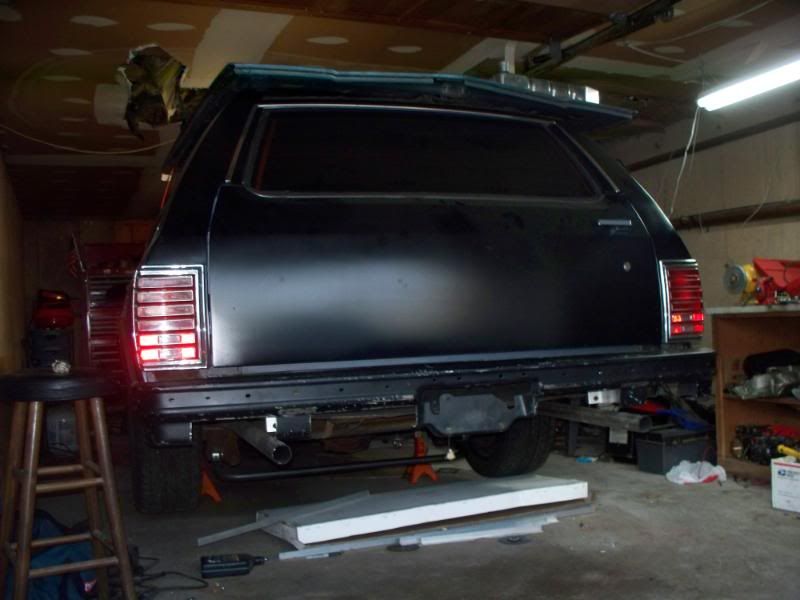

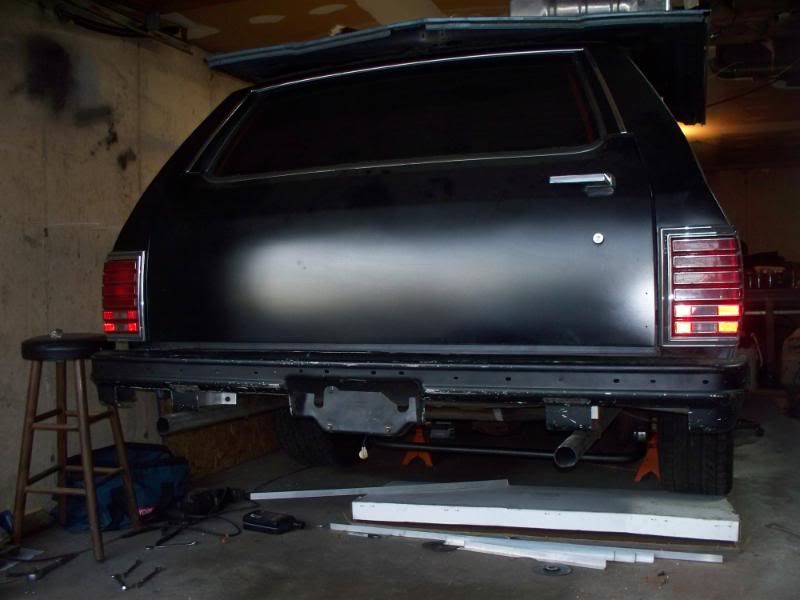

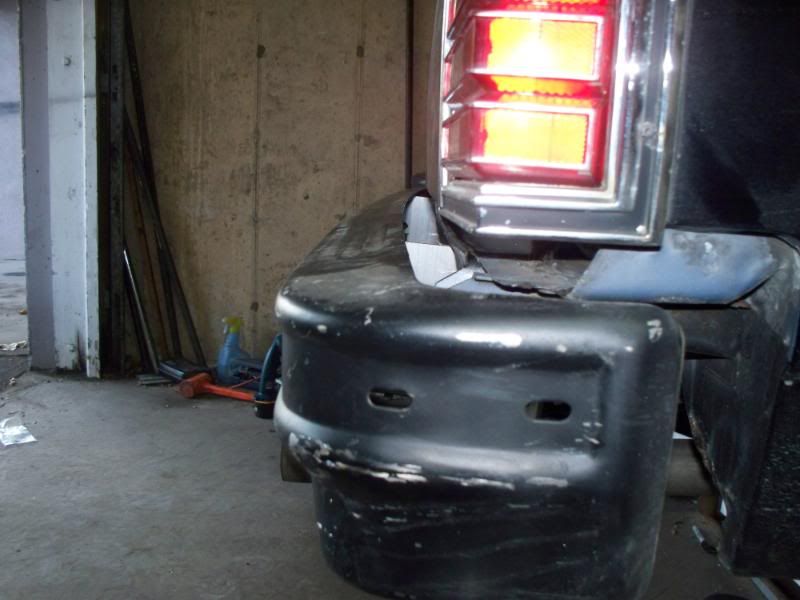

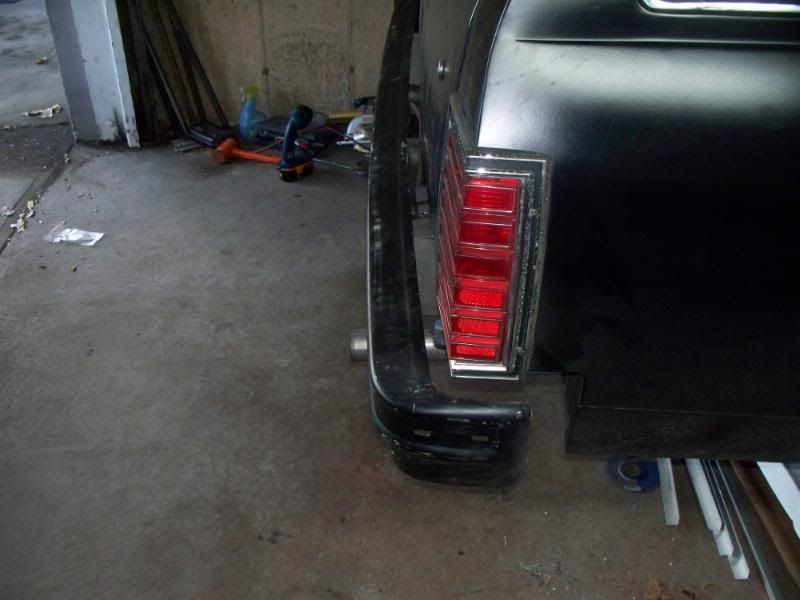

    Over the weekend with the help of my wife and LV2DAY who stopped over(Thanx for the help btw) we got it mounted. It's not quite as close to the body as I would like but I think it looks good. Yea I know it needs paint. It's all scracted up from taking it on and off and laying on the floor.
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

  6. The Stickman

    The Stickman Well-Known Member

    Joined:
    Nov 26, 2008
    Messages:
    1,316
    Likes Received:
    9
    Trophy Points:
    111
    Wagon Garage:
    3
    Location:
    Lehigh Valley pa

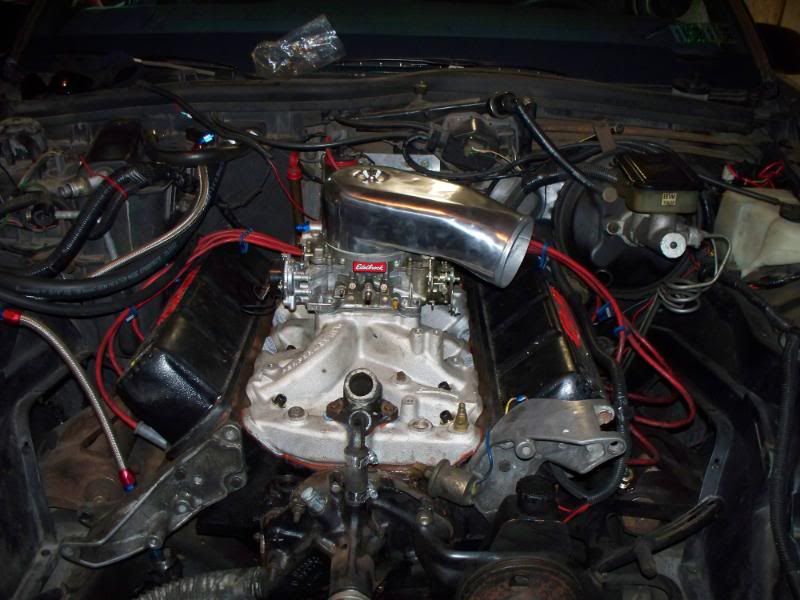

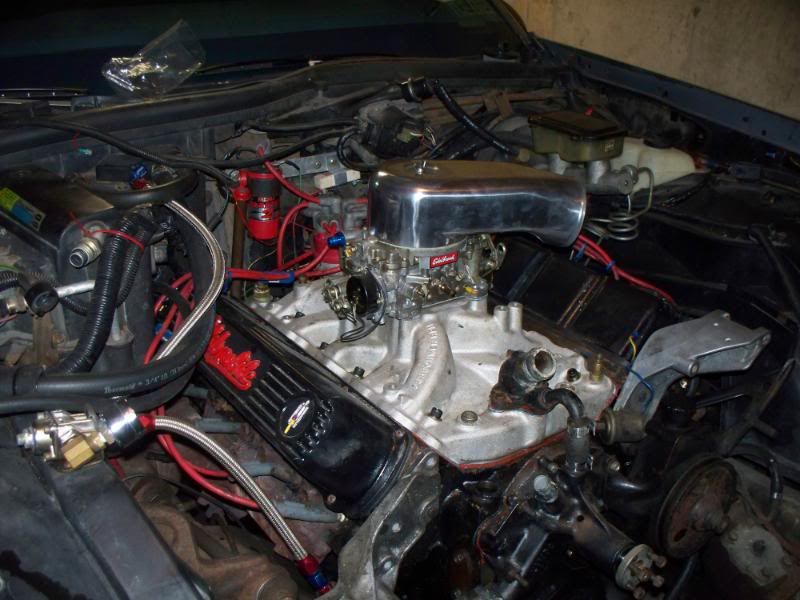

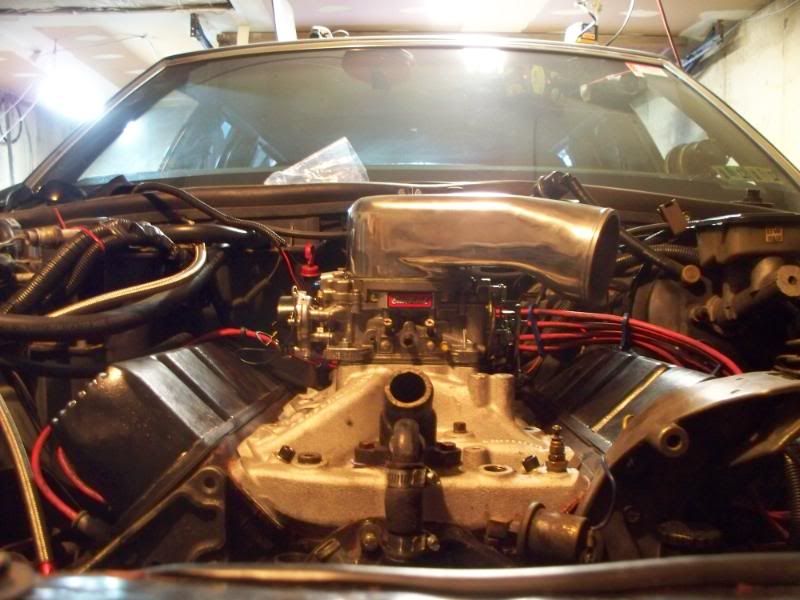

    Here are some engine pics. The Holley Street Dominator is out and the Edelbrack Perfromer RPM is in. And Here is the air hat I am going to use. Believe it's a Spectre.
    [​IMG]
    [​IMG]
    [​IMG]

  7. Bob Scott

    Bob Scott New Member

    Joined:
    Jul 18, 2009
    Messages:
    214
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    St. Louis Missouri
    Stickman, is your battery in the left front position behind the grill?
    I'm planning on moving mine to the left rear 'tool compartment' and use the old battery position for an air box.

  8. The Stickman

    The Stickman Well-Known Member

    Joined:
    Nov 26, 2008
    Messages:
    1,316
    Likes Received:
    9
    Trophy Points:
    111
    Wagon Garage:
    3
    Location:
    Lehigh Valley pa

    It's now in the old spare tire well right rear. Took out the hump and put a flat floor in. I will be taking out that circle piece out of the battery tray and mounting the airfliter under the tray.

  9. The Stickman

    The Stickman Well-Known Member

    Joined:
    Nov 26, 2008
    Messages:
    1,316
    Likes Received:
    9
    Trophy Points:
    111
    Wagon Garage:
    3
    Location:
    Lehigh Valley pa

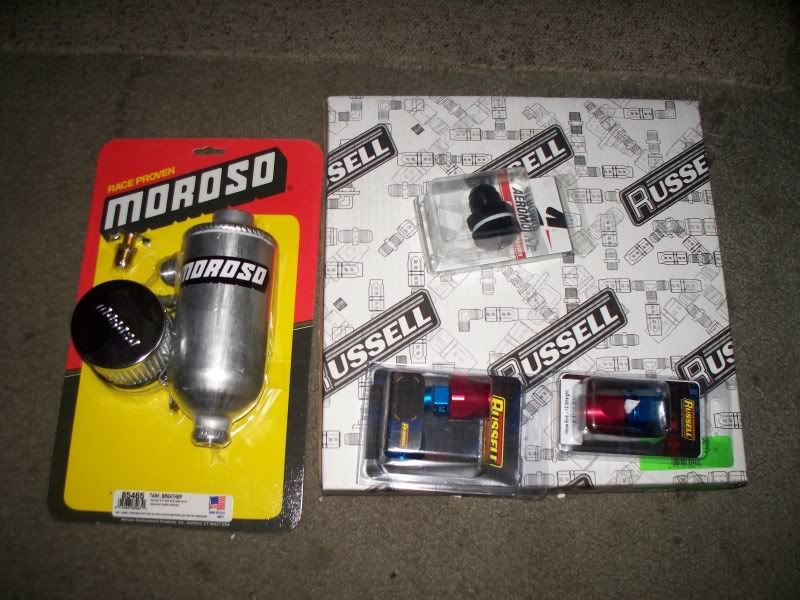

    OK got some new parts today. It was a sugggested mod by Yelcamino from another forum, so thanx to him for the idea and info. Should be a much better system than just a PCV and breather. I had a could instnces of oil in the breather so this should fix that. It's a Moroso catch can/breather, AN fittings, hose, and an AN bulkhead fitting to mount to the valve cover. It all looks very cool and hopefully it helps.
    [​IMG]

  10. Bob Scott

    Bob Scott New Member

    Joined:
    Jul 18, 2009
    Messages:
    214
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    St. Louis Missouri
    I'd rather put it there but I don't want to give up my third seat for the sake of somewhere to put the spare tire.
    I have to do rust work on the spare tire well so maybe still.

  11. The Stickman

    The Stickman Well-Known Member

    Joined:
    Nov 26, 2008
    Messages:
    1,316
    Likes Received:
    9
    Trophy Points:
    111
    Wagon Garage:
    3
    Location:
    Lehigh Valley pa

    Well even with my flat floor in the spare tire well I could fit a space saver tire. Now wether a space saver and battery would fit there I don't know.

  12. Bob Scott

    Bob Scott New Member

    Joined:
    Jul 18, 2009
    Messages:
    214
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    St. Louis Missouri
    Flat would make repairing the rust easier that's for sure.
    Any pics of above and below?

  13. the Rev

    the Rev senior junior Charter Member

    Joined:
    Aug 24, 2006
    Messages:
    9,321
    Likes Received:
    24
    Trophy Points:
    0
    Wagon Garage:
    3
    Location:
    BC,canada
    nice stuff Stick(y)

  14. The Stickman

    The Stickman Well-Known Member

    Joined:
    Nov 26, 2008
    Messages:
    1,316
    Likes Received:
    9
    Trophy Points:
    111
    Wagon Garage:
    3
    Location:
    Lehigh Valley pa

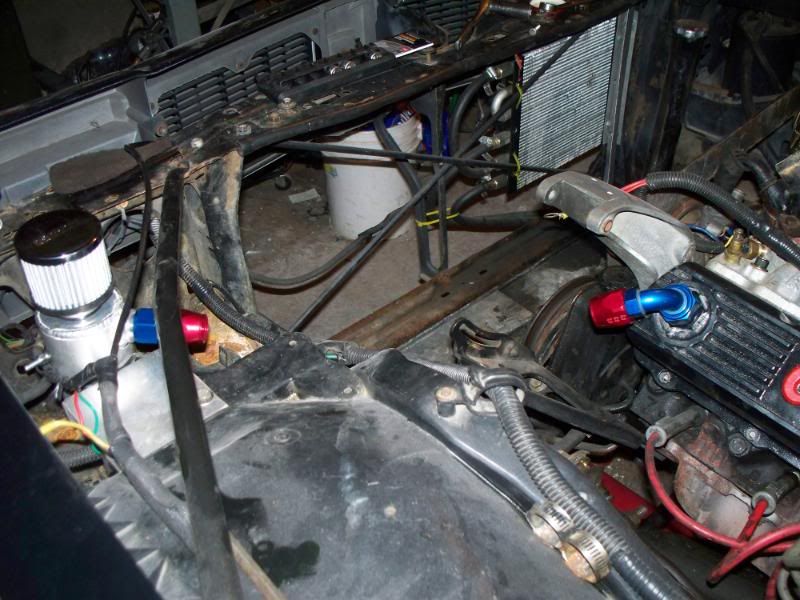

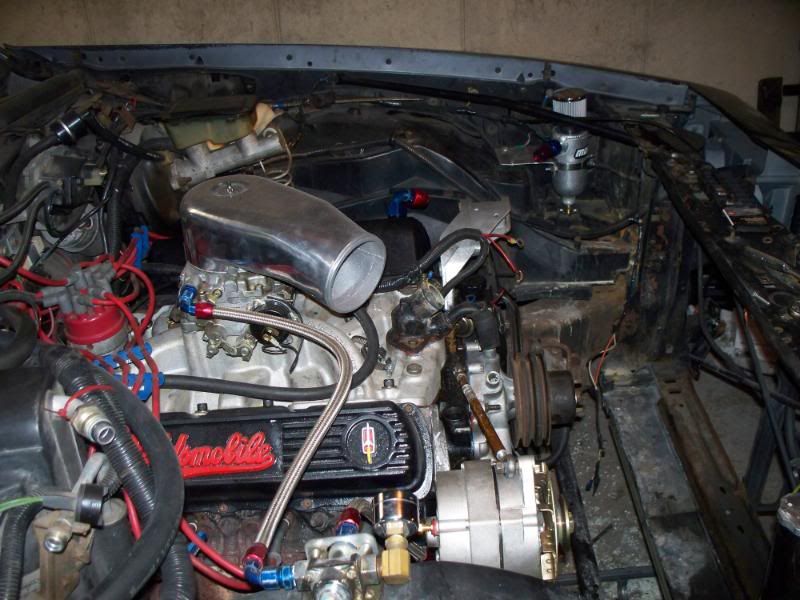

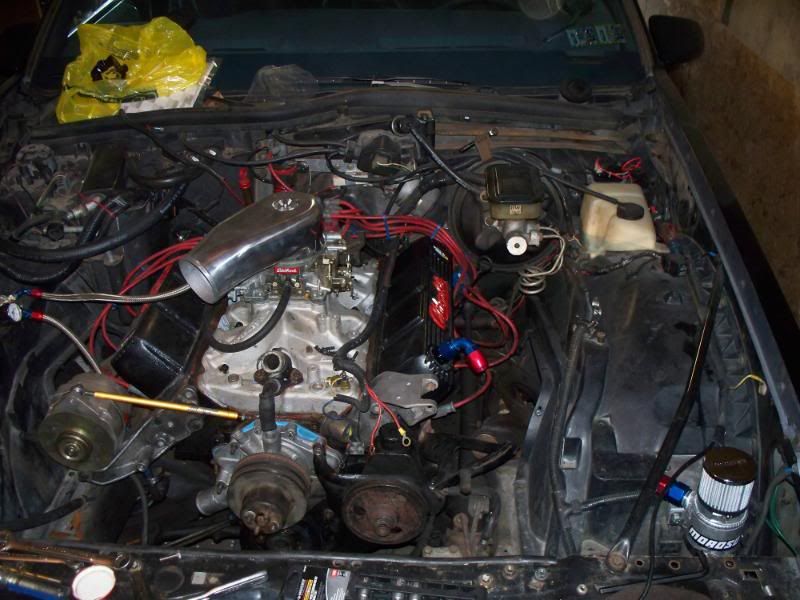

    Ok got a few thigs done today. Got my second diffuser tunnel done but made the dumb mistake of not trimming it down like the first one. So tomorrow I have to cut it apart. I also got the Moroso catch can mounted. Might add some small braces under the mount as it flexs some. Also got the bulkhead fitting mounted to the valve cover. This should look pretty nice.
    [​IMG]

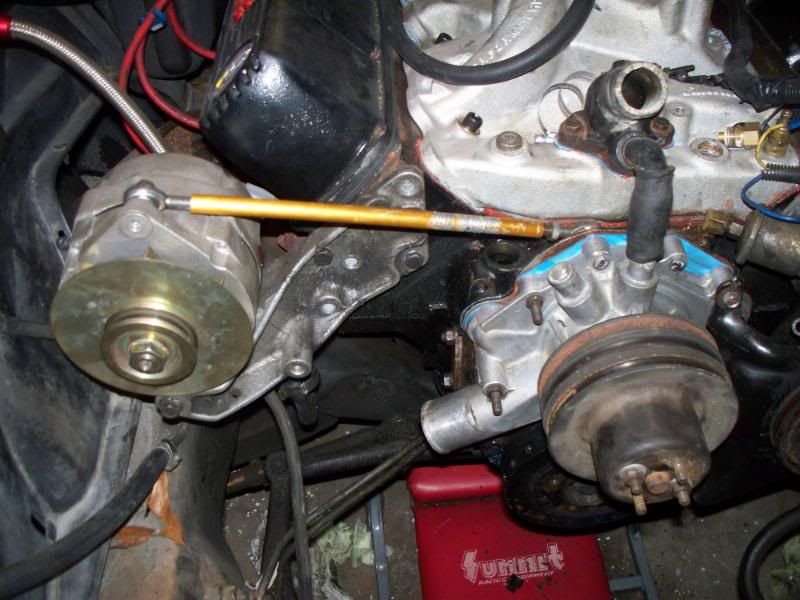

    I also worked on my passenger side altenator mount. It is very sturdy. I can get it lined up with the center groove of the 3 groove pulleys. I need to get the power steering pump with the 2 groove pullies out tomorrow. But things are looking good.
    [​IMG]
    [​IMG]
    [​IMG]

  15. Stormin' Norman

    Stormin' Norman Well-Known Member

    Joined:
    May 30, 2007
    Messages:
    19,635
    Likes Received:
    32
    Trophy Points:
    813
    Wagon Garage:
    1
    Location:
    Winnipeg, Manitoba, Canada
