AUS to US Trailer Wiring Adapter

Discussion in 'General Automotive Tech' started by Verada Valet, Feb 8, 2019.

  1. Verada Valet

    Verada Valet Well-Known Member

    Joined:
    Aug 30, 2012
    Messages:
    23
    Likes Received:
    23
    Trophy Points:
    47
    Location:
    Adelaide, Australia
    Hi there,

    I am planning on making a special trailer wiring adapter which converts from an Australian vehicle (which always has yellow turn signals) to an American trailer (which in most cases has red stop/tail lights/turn signals combined). This is just in case I'm planning on taking my own car to the USA (which can require special paperwork to be done).
    I am intending to wire an American 4-pin flat socket to an Australian 7-pin flat plug.

    An electronics retailer called Jaycar has the American plug/socket for only $8.

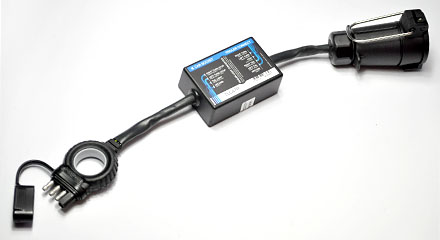

    [​IMG]
    https://www.jaycar.com.au/4-pin-wired-multi-pin-plug-socket/p/PP2030

    Here, this is an example of an Australian registered car in the USA:





    This is because I want to keep the Australian trailer socket on the vehicle.

    Thanks.

  2. Silvertwinkiehobo

    Silvertwinkiehobo "Everything that breaks starts with 'F.'"

    Joined:
    Apr 21, 2014
    Messages:
    14,928
    Likes Received:
    2,950
    Trophy Points:
    710
    Location:
    New Braunfels, TX
    There are some US cars with amber taillights; to tow a U-haul trailer, I needed a converter that wired in to my loom, then terminated as a 4-pin plug, similar to the one you have up there. I believe this is it; if you need confirmation, let me know by PM and I can swing by the local U-Haul dealer and confirm it, or get the proper part number for what you need. https://www.uhaul.com/MovingSupplie...le-Wiring/Taillight-Converter-59236/?id=19814

  3. Verada Valet

    Verada Valet Well-Known Member

    Joined:
    Aug 30, 2012
    Messages:
    23
    Likes Received:
    23
    Trophy Points:
    47
    Location:
    Adelaide, Australia
  4. 59 wagon man

    59 wagon man Well-Known Member

    Joined:
    Jun 20, 2011
    Messages:
    1,480
    Likes Received:
    133
    Trophy Points:
    146
    Wagon Garage:
    1
    Location:
    hollywood fl
    is the 7 pin to provide for electric brakes? cause the 4 pin is just lights no brakes

  5. HotRodRacer

    HotRodRacer Moderator Staff Member Moderator

    Joined:
    Oct 24, 2017
    Messages:
    1,038
    Likes Received:
    441
    Trophy Points:
    203
    Wagon Garage:
    1
    Location:
    Northeast Tennessee
    The three "extra" pins provide for trailer electric brakes, auxiliary power, and reverse lights.
