1966 Nova wagon 2 door conversion.

Discussion in 'Station Wagon Projects' started by Nova66mussl, Jan 13, 2019.

  1. Nova66mussl

    Nova66mussl Active Member

    Joined:
    Jan 8, 2019
    Messages:
    87
    Likes Received:
    64
    Trophy Points:
    44
    Location:
    East Wenatchee, WA
    I wrapped the exhaust system to help with heat penetration through the floor and a heat shield around the muffler to keep heat from the fuel tank. I am re-thinking this so it may all come off. I have heard of rust issues with this application and since the exhaust is ceramic coated at a cost of $985.00 I don't know if I want to risk it. May be over thinking this as the floor has sound mat and will have ample insulation under the carpet.
    2017-09-17 18.15.46 (800x600).jpg 2017-09-17 18.15.59 (800x600).jpg 2017-09-17 18.16.16 (800x600).jpg

    ModelT1 likes this.
  2. Nova66mussl

    Nova66mussl Active Member

    Joined:
    Jan 8, 2019
    Messages:
    87
    Likes Received:
    64
    Trophy Points:
    44
    Location:
    East Wenatchee, WA
    The entire inside has been covered in Fat Mat including the roof. This will provide insulation and a quiet ride. There will also be a foam insulation on the roof before the headlined is installed.
    094 (800x600).jpg 095 (800x600).jpg 096 (800x600).jpg 097 (800x600).jpg

    ModelT1 likes this.
  3. Nova66mussl

    Nova66mussl Active Member

    Joined:
    Jan 8, 2019
    Messages:
    87
    Likes Received:
    64
    Trophy Points:
    44
    Location:
    East Wenatchee, WA
    The front seats being used are Toyota Solara six way power and heated.

    ModelT1 likes this.
  4. Nova66mussl

    Nova66mussl Active Member

    Joined:
    Jan 8, 2019
    Messages:
    87
    Likes Received:
    64
    Trophy Points:
    44
    Location:
    East Wenatchee, WA
    The doors and tailgate were painted later. All of the paint was mixed at one time, all from the same can but....as you can see, the doors appear to be lighter so this is something we will deal with.
    049 (800x600).jpg 050 (800x600).jpg 051 (800x600).jpg 052 (800x600).jpg 053 (800x600).jpg 054 (800x600).jpg 055 (800x600).jpg

    ModelT1 likes this.
  5. Nova66mussl

    Nova66mussl Active Member

    Joined:
    Jan 8, 2019
    Messages:
    87
    Likes Received:
    64
    Trophy Points:
    44
    Location:
    East Wenatchee, WA
  6. Nova66mussl

    Nova66mussl Active Member

    Joined:
    Jan 8, 2019
    Messages:
    87
    Likes Received:
    64
    Trophy Points:
    44
    Location:
    East Wenatchee, WA
    Fortunately all the glass except the windshield is flat so having it made is fairly simple from a qualifies glass shop.
    001 (800x600).jpg 002 (800x600).jpg

    ModelT1 likes this.
  7. Nova66mussl

    Nova66mussl Active Member

    Joined:
    Jan 8, 2019
    Messages:
    87
    Likes Received:
    64
    Trophy Points:
    44
    Location:
    East Wenatchee, WA
    The side glass is glued from the inside so an outer frame was needed to finish it off. I had a sheet metal shop bend up some long pieces so I could cut and fit as needed. Once I was satisfied they were welded up, finished and painted. I then used windshield glue to hold the in place.
    001 (800x600).jpg 002 (800x600).jpg 001 (800x600).jpg 002 (800x600).jpg 003 (800x600).jpg 004 (800x600).jpg 002 (800x600).jpg 001 (800x600).jpg 002 (800x600).jpg 003 (800x600).jpg

    ModelT1 likes this.
  8. Nova66mussl

    Nova66mussl Active Member

    Joined:
    Jan 8, 2019
    Messages:
    87
    Likes Received:
    64
    Trophy Points:
    44
    Location:
    East Wenatchee, WA
    These are the inner rock shields I made to prevent "rock stars" on the top of the front fenders. There was nothing originally which prevented this. The underside was open and unprotected. They were sprayed with bedliner also.
    007 (800x600).jpg 008 (800x600).jpg

    ModelT1 likes this.
  9. Nova66mussl

    Nova66mussl Active Member

    Joined:
    Jan 8, 2019
    Messages:
    87
    Likes Received:
    64
    Trophy Points:
    44
    Location:
    East Wenatchee, WA
    Fender pics before install.
    004 (800x600).jpg 005 (800x600).jpg 006 (800x600).jpg

    ModelT1 likes this.
  10. Nova66mussl

    Nova66mussl Active Member

    Joined:
    Jan 8, 2019
    Messages:
    87
    Likes Received:
    64
    Trophy Points:
    44
    Location:
    East Wenatchee, WA
    More inner fender details.
    006 (800x600).jpg 001 (800x600).jpg 002 (800x600).jpg 003 (800x600).jpg 003 (800x600).jpg 004 (800x600).jpg 005 (800x600).jpg

    ModelT1 likes this.
  11. Nova66mussl

    Nova66mussl Active Member

    Joined:
    Jan 8, 2019
    Messages:
    87
    Likes Received:
    64
    Trophy Points:
    44
    Location:
    East Wenatchee, WA
    The car is void of any badging or emblems except for the grille. This ZO6 badge is a fender emblem from a 2003 ZO6. I kinda think is looks pretty good on the grille.
    002 (800x600).jpg 001 (800x600).jpg

    ModelT1 likes this.
  12. Nova66mussl

    Nova66mussl Active Member

    Joined:
    Jan 8, 2019
    Messages:
    87
    Likes Received:
    64
    Trophy Points:
    44
    Location:
    East Wenatchee, WA
    This is pretty much where I am as of today. The car has been at the upholstery shop for a number of month. The guy doing the work has a demanding full time job so progress on the interior has been slow but I am happy with his work so far. There's a lot of fabrication involved to achieve what works with the car. There has been some trial and error but I feel we have the style nailed down. I want something mildly modern without loosing the 60's feel. It will be all black leather with contrasting stitching. Also trying to incorporate some hidden storage areas. It's easy to hide stuff with a trunk but with a wagon all the cargo area is visible. There will be a custom console that goes from front to back between the rear seat bottoms. That will probably be our biggest challenge. It will be low and lean. I am not a fan of the earlier cars having consoles that swoop up to the bottom of the dash. They don't look right in my opinion.
    004 (800x600).jpg 005 (800x600).jpg

  13. Nova66mussl

    Nova66mussl Active Member

    Joined:
    Jan 8, 2019
    Messages:
    87
    Likes Received:
    64
    Trophy Points:
    44
    Location:
    East Wenatchee, WA
    ModelT1 likes this.
  14. Nova66mussl

    Nova66mussl Active Member

    Joined:
    Jan 8, 2019
    Messages:
    87
    Likes Received:
    64
    Trophy Points:
    44
    Location:
    East Wenatchee, WA

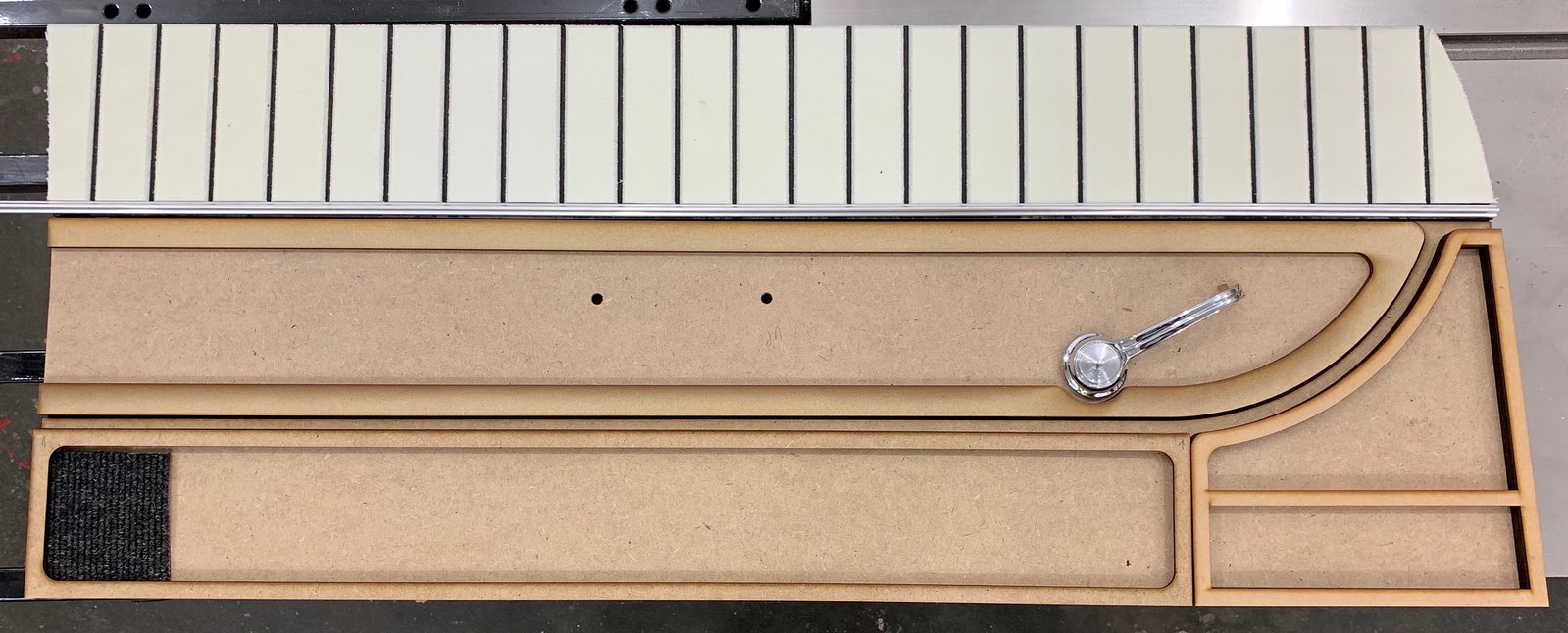

    Here is a pic of the door panel design.The lower right is the speaker grille.
    [​IMG]image1 by Patrick Brown, on Flickr

    OrthmannJ and ModelT1 like this.
  15. OrthmannJ

    OrthmannJ Always looking for old ford crew cabs

    Joined:
    Apr 25, 2009
    Messages:
    13,379
    Likes Received:
    2,636
    Trophy Points:
    758
    Location:
    Yakima Washington
    I like your choice of valve covers.
