Installing grille rivets on a Malibu

Discussion in 'General Automotive Tech' started by RMay, Jan 4, 2019.

  1. RMay

    RMay Well-Known Member

    Joined:
    Jan 7, 2014
    Messages:
    347
    Likes Received:
    278
    Trophy Points:
    177
    Wagon Garage:
    2
    Location:
    Rochester, NY
    Does anyone know if there is a specific tool for installing the factory type rivets on a 67 Malibu grille? A friend is restoring one and wants to use the factory style rivets. I know they sell the rivets and also a domed head bolt that looks like a rivet which I will be using on my 66 Wagon.
    I did find one instruction that said to use vise grips. You have to put tape over the rivet, place a small ball bearing under the rivet and squeeze. Sounds like it would work but I expected that there may have been some specialized tool designed for this since GM used this method on several models in the 60's.
    Any help or ideas would be appreciated.

    First image is what the factory rivet looks like. Second image is actually a nut and bolt setup.
    c-1266-103ak_20180411220402.jpg th.jpg

    ModelT1 likes this.
  2. Silvertwinkiehobo

    Silvertwinkiehobo "Everything that breaks starts with 'F.'"

    Joined:
    Apr 21, 2014
    Messages:
    14,928
    Likes Received:
    2,950
    Trophy Points:
    710
    Location:
    New Braunfels, TX
    There is, I've only seen one pic of it, I think in a late '60s Fisher body manual, but I couldn't tell you if you could get one now.

  3. martyk98

    martyk98 Well-Known Member

    Joined:
    Jan 8, 2015
    Messages:
    237
    Likes Received:
    36
    Trophy Points:
    46
    Wagon Garage:
    2
    Location:
    WA state
    Your friend might have to resort to what the OG's did back in the day, Make The Tool!!!! My grandfather had drawers full of one-off home made tools in his garage.

    ModelT1 likes this.
  4. cammerjeff

    cammerjeff Longroofs Rule!

    Joined:
    Aug 30, 2008
    Messages:
    5,187
    Likes Received:
    904
    Trophy Points:
    427
    Location:
    Belleville, MI
    They would have used a rivet squeezer, but what style I do not know. I don't know what the access around the grill is like. But I would look into using a hand tool that you tap with a hammer while holding a heavy bucking bar on the round head of the rivet.
    I would try it out on something you don't mind damaging until you get the technique right.

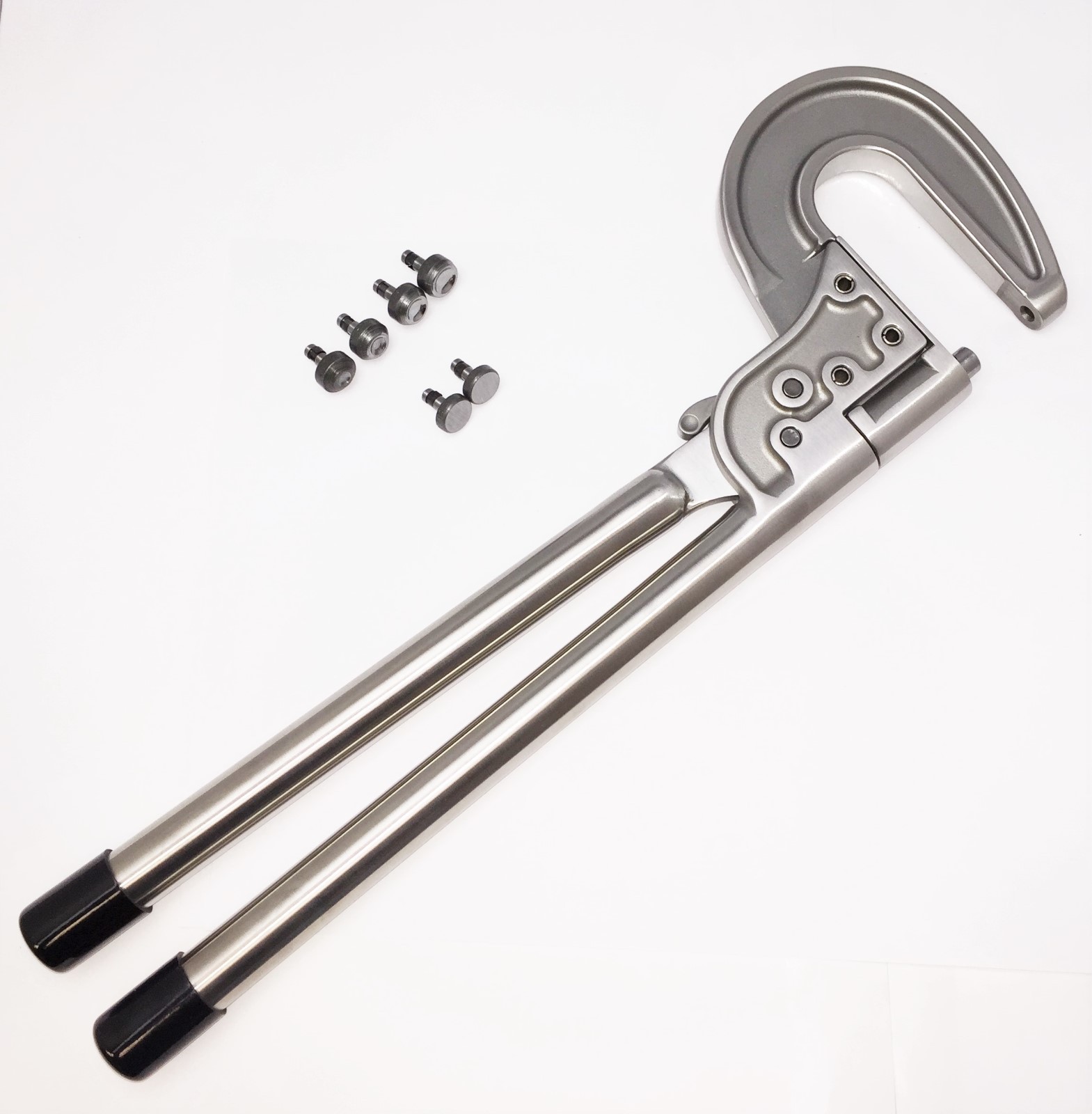

    the squeezer would be something like this

    https://www.ebay.com/itm/Hand-Rivet-Squeezer-3-Reach-w-6-Rivet-Sets-New-/280750358896

    [​IMG]

  5. Silvertwinkiehobo

    Silvertwinkiehobo "Everything that breaks starts with 'F.'"

    Joined:
    Apr 21, 2014
    Messages:
    14,928
    Likes Received:
    2,950
    Trophy Points:
    710
    Location:
    New Braunfels, TX
    That's pretty close to the Kent-Moore tool, but the Kent-Moore one didn't have multiple swapable anvils.
