Coolant Recovery Build

Discussion in 'General Automotive Tech' started by maks8489, Sep 23, 2012.

  1. maks8489

    maks8489 New Member

    Joined:
    Mar 29, 2011
    Messages:
    22
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Alabama
    My '68 Ford didn't originally have a coolant overflow bottle. I wanted to add one that would siphon back into the radiator on cool down. Space is at a premium under hood due to some other mods I have planned, so I decided to build one myself that takes up very little room.

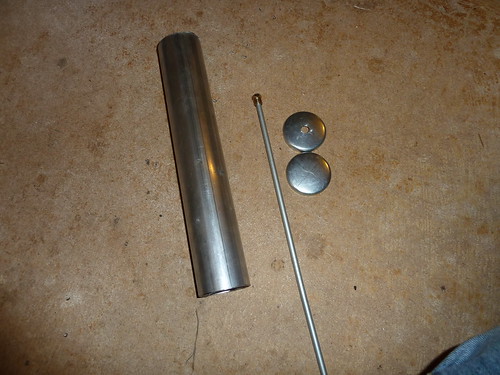

    This is what I started with. 2-1/2 inch exhaust tubing, 2 freeze plugs, and a stick of 5/16 brake line.
    [​IMG][​IMG][​IMG][​IMG]
    I tapped one of the plugs, cut the brake line and flipped the nut around backwards
    [​IMG]
    Then I relocated the horns and cut a hole in the inner fender. Uses the factory threaded inserts for the horns
    [​IMG]
    Laid out pattern on 16ga steel & cut it out
    [​IMG]
    [​IMG]

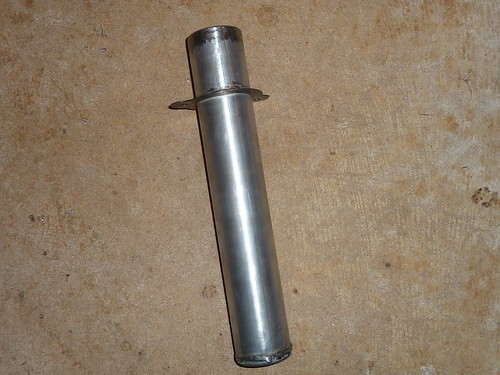

    Had a buddy weld it for me
    [​IMG]

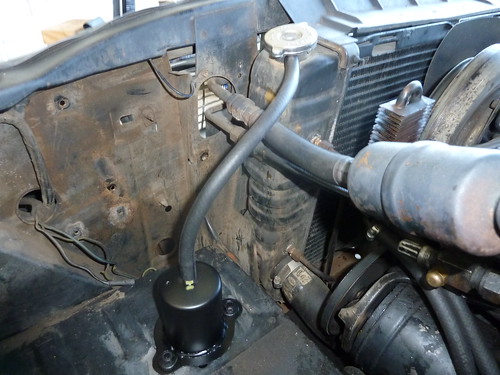

    Painted and installed
    [​IMG]

    maks8489, Sep 23, 2012
    #1
  2. 1tireman

    1tireman Well-Known Member

    Joined:
    Mar 2, 2011
    Messages:
    5,428
    Likes Received:
    274
    Trophy Points:
    238
    Wagon Garage:
    2
    Location:
    Slidell, Louisiana
    Looks good!

    1tireman, Sep 23, 2012
    #2
  3. BlueVista

    BlueVista Well-Known Member Charter Member

    Joined:
    Jun 29, 2006
    Messages:
    1,900
    Likes Received:
    141
    Trophy Points:
    170
    Location:
    Northeast Ohio
    That's two cool.:cool::cool:

    BlueVista, Sep 23, 2012
    #3
  4. Steve-E-D

    Steve-E-D Well-Known Member

    Joined:
    Aug 22, 2009
    Messages:
    2,518
    Likes Received:
    229
    Trophy Points:
    163
    Wagon Garage:
    1
    Location:
    Vancouver, WA, USA
    Nice!

    That gives me some good ideas for my own.

    Thanks.

    Steve-E-D, Sep 23, 2012
    #4
  5. unkldave

    unkldave Cockroach Dave

    Joined:
    Jun 9, 2012
    Messages:
    299
    Likes Received:
    3
    Trophy Points:
    82
    Wagon Garage:
    1
    Location:
    Lincoln City Oregon
    I LIKE!! by itself is too short a reply so I made it longer. OK?

    unkldave, Oct 23, 2012
    #5
  6. Dewey Satellite

    Dewey Satellite New Member

    Joined:
    Oct 30, 2011
    Messages:
    4,367
    Likes Received:
    9
    Trophy Points:
    0
    Wagon Garage:
    1
    Location:
    Ogden, Utah
    Sweet!! Nice work and very ingenius idea!

    Dewey Satellite, Oct 23, 2012
    #6
  7. ModelT1

    ModelT1 Still Lost in the 50's

    Joined:
    May 18, 2011
    Messages:
    22,123
    Likes Received:
    1,439
    Trophy Points:
    808
    Wagon Garage:
    1
    Location:
    Central Illinois
    Great idea.:lolup:

    ModelT1, Oct 23, 2012
    #7
  8. maks8489

    maks8489 New Member

    Joined:
    Mar 29, 2011
    Messages:
    22
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    Alabama
    Glad you guys like it. It was the first time I'd ever tried building anything from scratch in metal so I'm pretty proud of it.

    maks8489, Oct 23, 2012
